Promech Industries Private Limited

16 Lac / Piece

1 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier, Retailer, Wholesaler
Brand Name Mark Sorting System
Condition New
Automatic Grade Automatic
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Certification
CE Certified
Voltage
220V
Type
Color Sorting Equipment
Weight
1000-2000kg
Country of Origin
India
Delivery Time
one month

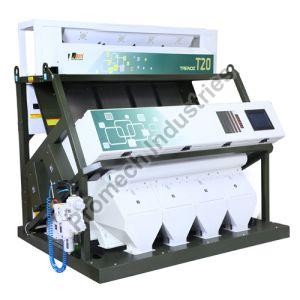

Tea Color Sorter

Features:

  • 2048 pixel CCD Scanner camera technology Double side view.
  • Two cameras for 20 channels
  • High speed processors
  • LCD touch screen HMI
  • Automatic ejector testing facility in all models
  • 8 mm Channel width
  • Smooth flow vibrators 8 mm Channel width
  • Smooth flow vibrators
  • 15 program modes (individual name can choose for each material)
  • Hardened, anodized 20 channels 1 chute
  • High speed ejector valves - 2 milli second (500 cycles per second)
  • High precision Ejector nozzles
  • Air stabilizer for steady sorting
  • Front and side inspection doors
  • Duct collecting ducts
  • Primary, secondary and final sorting
  • Channel upgrade option in selected models

CONTROL PANEL:

  • Manual control panel
  • Manual ON/OFF buttons
  • Vibrator control knobs Primary/Secondary / Final
  • By-pass switch
  • Alarm Mute button
  • This all controls available in touchscreen also (optional)

LCD TOUCH PANEL:

  • 6'' monochrome LCD Touch panel
  • 15 selectable programs
  • Black / White sensitivity adjustments

Yes! I am interested


Technical Specifications

Model Channel Dimensions (inches) Air requirements Power consumption Capacity
    Width Depth Height 72-114 psig (5-8 bar) 230 VAC Single Phase Tones/hour
Smart X-60 40 channel 42 55 76 18cfm 1 KW 0.5-1.5
60 channel 42 55 76 21cfm 1.2 KW 0.5-2
Smart X-120 80 channel 72 55 76 28cfm 1.5 KW 38354
100 channel 72 55 76 32cfm 2 KW 1.25-2.5
120 channel 72 55 76 42cfm 2.5 KW 37626
