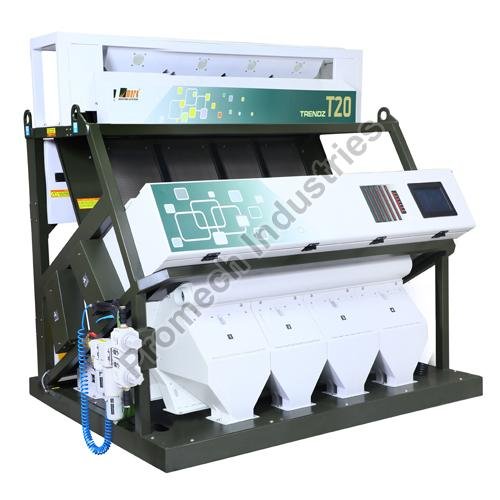

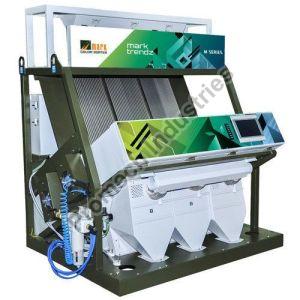

Grains Color Sorter Machine
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Brand Name | Mark Shorting System |
| Condition | New |
| Application | Industrial Use |
| Click to view more | |
Preferred Buyer From
| Location | Anywhere in India |
Product Details
Country of Origin
India
Grains Color Sorting Machine
To meet the demands of our patrons, we are manufacturing, supplying and exporting top quality Grains Color Sorting Machine. These machines are highly appreciated by our customers for their excellent performance and design. Best-in-class materials and components are brought from the reliable vendors of the market to manufacture these machines. The Grains Color Sorting Machine is used to sort various grades of grains. We are able to deliver these machines under a specific time-frame at market leading prices.
Features :
- FPGA (Field Programmable Cate Array)Image Processing is minimum flaw size at 0.10mm
- 5000x3 pixel higher sensitive RGB Tri Chromatic CCD Color camera with high speed image reading system
- High speed pneumatic systems with low air consumption
- fully digital FPGA image processing with micro controller supported ensures high output with low rejection.
- Option in Led Light color changing
- Internet & mobile control facility
- Touch screen control panel to feed 15 programs
- Automatic self cleaning system
- Reverse sorting method
- Ejectors can test through systems /Laptops
- Ejection rate displayed
- Touch Screen can be controlled by computer and mobile
- Multi grain Sorter
Technical Specifications
| Chute Option Available | 12 Chute | 10 Chute | 8 Chute | 7 Chute | 6 Chute | 5 Chute | 4 Chute | 3 Chute | 2 Chute | 1 Chute |
| Chute Distribution (P+S+F) | 7+3+2or7+2+2+1 | 6+2+2or 6+2+1+1 | 5+2+1 or 4+2+1+1) | 4+2+1 or 4+2+(40+21) | 4+1+1 or 4+2+(40+21) | 3+1+1 or 3+1+(40+21) | 2+1+1 or 2+1+(40+21) | 2+1 or 2+(40+21) | 1+1 or 1+(40+21) | - |
| Output (TPH) for Rice/Dal | 7 to 9 | 6 to 8 | 5 to 7 | 4 to 6 | 3.5 to 4.5 | 3 to 5 | 2 to 4 | 1.5 to 2.5 | 1 to 2 | 0.75 to 1.5 |
| No.of.camera (F&R) | 12+12 | 10+10 | 8+8 | 7+7 | 6+6 | 5+5 | 4+4 | 3+3 | 2+2 | 1+1 |
| Air@7.5kg/Cm2 | 230 CFM | 180 CFM | 160 CFM | 140 CFM | 115 CFM | 96 CFM | 72 CFM | 54 CFM | 44 CFM | 28 CFM |
| Compressor Requirement | 50 HP Screw | 40 HP Screw | 35 HP Screw | 35 HP Screw | 30 HP Screw | 25 HP Screw | 20 HP Screw | 15 HP Screw | 10 HP Screw | 10 HP Screw |
| Dimension (LXWXH) feet | 16x4.88x5.97 | 13.83x4.88x5.97 | 10.87x4.88x5.97 | 9.73x4.88x5.97 | 8.59x4.88x5.97 | 7.46x4.88x5.97 | 6.33x4.88x5.97 | 5.19x4.88x5.97 | 4.1x4.88x5.97 | 2.92x4.88x5.97 |
| Cabin Dimension Feet (LXWXH) | 20x10x8 | 18x10x8 | 16x10x8 | 14x10x8 | 13x10x8 | 12x10x8 | 10x10x8 | 9x10x8 | 8x10x8 | 7x10x8 |
